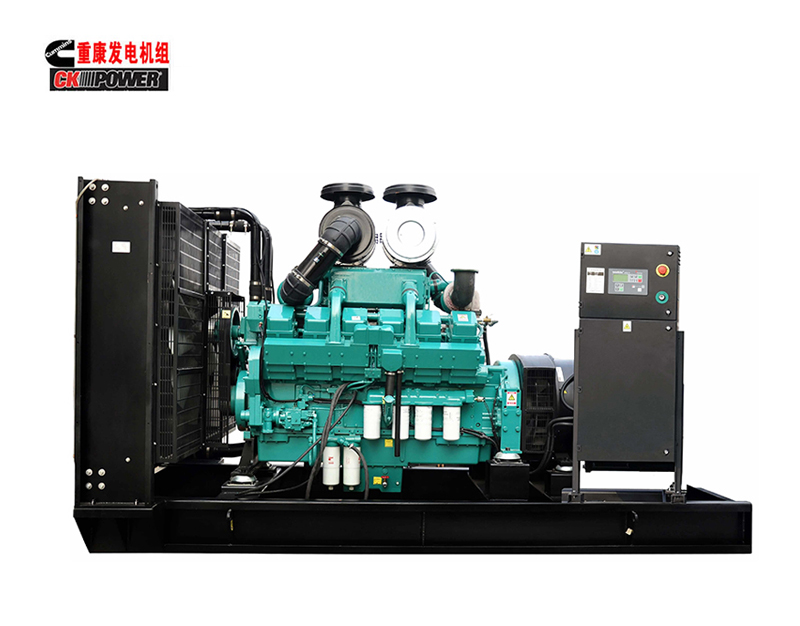

500KW generator set
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
| GENERATOR SET PARAMETERS | |||
|---|---|---|---|
| Generator Set Model | CSGF | Frequency | 50 HZ |
| Generator Set Power | KW | Output Voltage | 400/230 V |
| Diesel Engine Power | KW | Power Factor | 0.8 (Lagging) |
| Output Capacity | KVA | Generator Set Dimensions | mm |
| Output Current | A | Generator Set Net Weight | kg |
| DIESEL ENGINE PARAMETERS | |||
|---|---|---|---|
| Model | – | Rated Speed | 1500 r/min |
| Cylinders | Cylinders | Maximum Output Power | KW |
| Cylinder Arrangement | Type | Fuel Specification / Grade | China 0# Light Diesel |
| Bore × Stroke | mm | Fuel Consumption | ≤ g/kW.h |
| Total Cylinder Volume | L | Lubricating Oil Specification / Grade | API-CD Grade or Higher |
| Compression Ratio | – | Maximum Lubricating Oil Temperature | 121 °C |
| Intake Method | – | Maximum Oil Consumption | 0.24 L/h |
| Governor Type | – | Exhaust Gas Maximum Temperature | 405/410 °C |
| Thermostat Temperature Range | 82-93(°C) | Intake Resistance | 2.5 kPa |
| Allowable Maximum Back Pressure | 10 kPa | Exhaust Gas Volume | L/S |
| Cooling Method | Closed-circuit Water Cooling | ||
| GENERATOR PARAMETERS | |||
|---|---|---|---|
| Manufacturer | Chongkang Generator (Shenzhen) Co., Ltd | Brand / Origin | Stanford / UK (Original Configuration) |
| Model | CS- | Excitation Method | Brushless Self-excited |
| Voltage Adjustment Range | ±5% | Voltage Control Method | AVR |
| Steady-state Voltage Regulation Rate | ±0.5% | Transient Voltage Regulation Rate | ±15% |
| Steady-state Frequency Regulation Rate | ≤1% | Frequency Stabilization Time | ≤3S |
| Temperature Rise | H°C | Overcurrent | 3 ~ 5Ie≤5S |
| Insulation Class | H Class | Overload Capacity | 3 ~ 5Ie≤5S |
| Protection Class | IP22 | Short-circuit Current | 3Ie for 2 Seconds |
| Efficiency | 92.4% | Short-circuit Capacity | 3Ie for 2 Seconds |
| Telephone Interference Factor | THF<2%, TIF<50 | Cooling Method | Self-ventilated |
