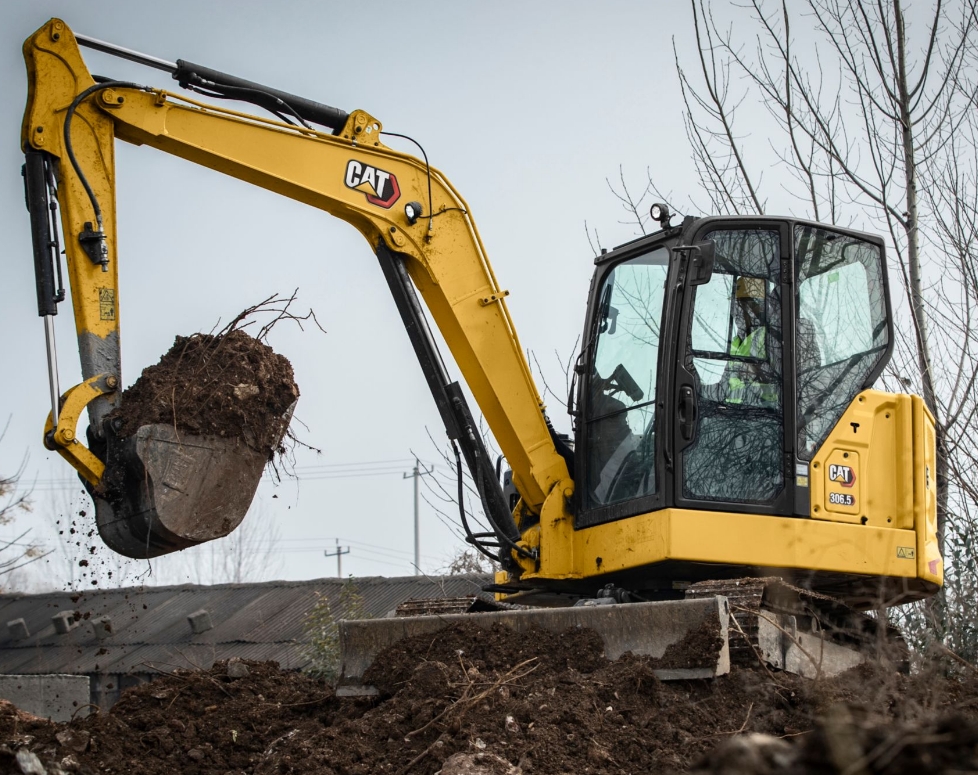

Compact Excavator 306.5

0 out of 5

Free shipping on orders over $50!

Guaranteed Safe Checkout

Main Technical Specifications

Engine Model
Cat C2.4 Turbo
Net Power
34.9 kW
Operating Weight
6175 kg

Category	Item	Value
Travel System	Travel Speed – High	5 km/h
	Travel Speed – Low	3.1 km/h
	Max Drawbar Pull – High Speed	31 kN
	Max Drawbar Pull – Low Speed	51 kN
	Ground Pressure	33.7 kPa
	Max Gradeability	30 degrees
Maintenance & Refill Capacities	Cooling System	10 l
	Engine Oil	9.5 l
	Fuel Tank	105 l
	Hydraulic System	104 l
	Hydraulic Tank	53 l
	–	–
Swing System	Machine Swing Speed	11.3 r/min
Dozer Blade	Width	1980 mm
Dozer Blade	Height	375 mm
Certification – Cab	Roll-Over Protective Structure (ROPS)	ISO 12117-2:2008
	Top Canopy (Optional)	ISO 10262:1998 (Level 1)
	Tip-Over Protective Structure (TOPS)	ISO 12117:1997
	–	–
Dimensions – Standard Stick	Boom Retracted Position	2126 mm
	Cab Height	2540 mm
	Digging Depth	3902 mm
	Ground Clearance	306 mm
	Max Dozer Blade Depth	615 mm
	Max Dozer Blade Height	420 mm
	Max Digging Height	5490 mm
	Max Discharge Clearance	3870 mm
	Max Reach	6090 mm
	Max Reach at Ground Level	5975 mm
	O/A Transport Length	5789 mm
	O/A Wheel Track	1980 mm
	O/A Chassis System Length	2532 mm
	Stick Length	1650 mm
	Swing Bearing – Height	657 mm
	Tail Swing Radius	1585 mm
	Track/Pad Width	400 mm
	Transport Height	2206 mm
	Vertical Wall Digging	2414 mm
	Upper Structure Width	1950 mm
	–	–
	–	–
	–	–
	–	–
Noise	Operator Sound Pressure Level (ISO 6396:2008)	72 dB(A)
