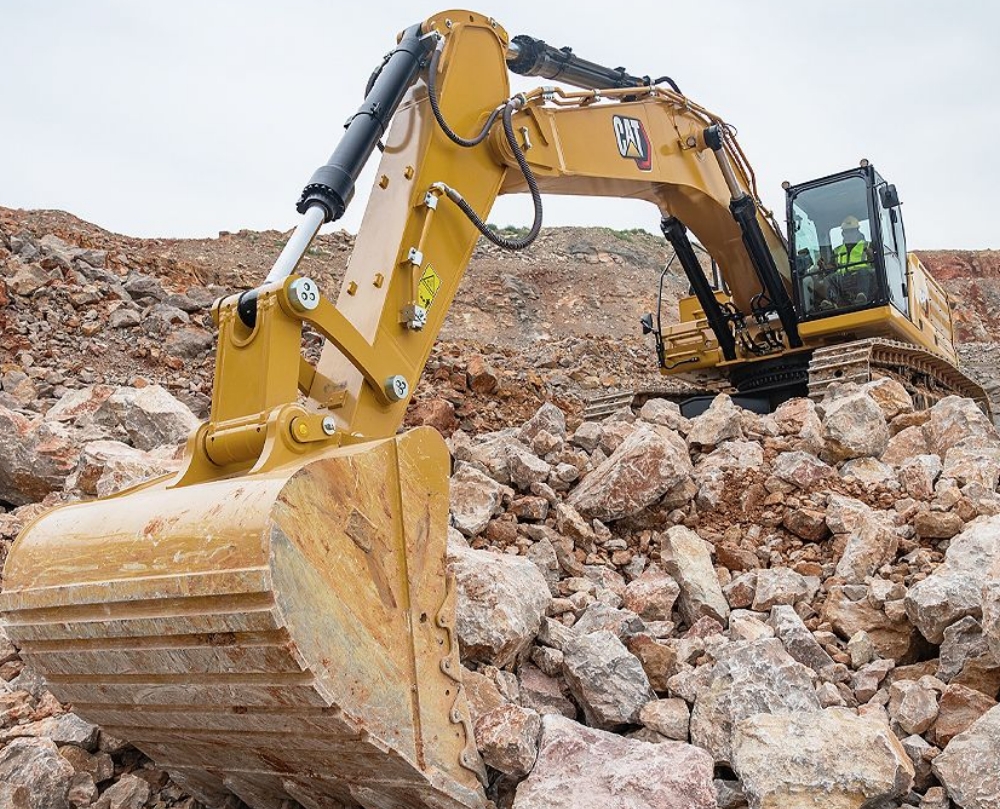

Main Technical Specifications

Net Power – ISO 9249
308 kW
Operating Weight
47600 kg
Maximum Digging Depth
7300 mm

Specification

Category	Item	Value
Weight	Operating Weight	47600 kg
Working Range & Digging Force	Max Digging Depth	7300 mm
	Boom (Reinforced Type)	6.55 m (21’6″)
	Stick (Large Bucket Type)	3 m (9’10”)
	Bucket (SD Type)	3.2 m³ (4.20 yd³)
	Max Reach at Ground Level	11270 mm
	Max Digging Height	10260 mm
	Max Loading Height	6730 mm
	Min Loading Height	2570 mm
	Max Digging Depth at 2440 mm (8 ft) Flat Bottom	7160 mm
	Max Vertical Wall Digging Depth	4800 mm
	Bucket Digging Force – ISO	291 kN
	Arm Digging Force – ISO	211 kN
	Max Digging Reach	–
Hydraulic System	Main System – Max Flow Rate (Attachment)	779 L/min
	Max Pressure – Equipment	35000 kPa
	Max Pressure – Travel	35000 kPa
	Max Pressure – Swing	25700 kPa
Swing Mechanical Device	Max Swing Torque	189 kN·m
Maintenance & Refill Capacities	Fuel Tank Capacity	680 l
	Cooling System	48 l
	Engine Oil	32 l
	DEF Tank	80 l
	Final Drive (Each)	11 l
	Hydraulic System (Incl. Tank)	550 l
	Hydraulic Tank	217 l
	–	–
Dimensions	Boom (Reinforced Type)	6.55 m (21’6″)
	Stick (Large Bucket Type)	3 m (9’10”)
	Bucket (SD Type)	3.2 m³ (4.20 yd³)
	Transport Height – Cab Top	3260 mm
	Handrail Height	3400 mm
	Transport Length	11630 mm
	Swing Radius of Counterweight	3760 mm
	Counterweight Clearance	1340 mm
	Ground Clearance	520 mm
	Track Length	5400 mm
	Center Distance Between Track Rollers	4360 mm
	Track Gauge	2740 mm
	Transport Width	3350 mm
	–	–
	–	–
Air Conditioning System	Air Conditioner	The air conditioning system on this machine contains fluorinated greenhouse gas refrigerant R134a (GWP = 1430). The system contains 1.00 kg (2.205 lb) of refrigerant, with a CO2 equivalent of 1.430 metric tons (1.576 tons).

Standard equipment

Standard equipment and optional equipment may vary. For detailed information, please consult your Cat dealer.

Cab
High-resolution LCD touch screen monitor
Mechanically adjustable seat

Engine
Two selectable modes: Power and Smart
Automatic engine speed control
Capable of operating at altitudes up to 3000 m (9840 ft)
Cooling capacity in high-temperature environment of 52°C (126°F)
Cold start capability at -18°C (0°F)
Dual-element air filter with integrated precleaner

Hydraulic system
Boom and stick regeneration circuit
Electronic main control valve
Automatic hydraulic oil preheating
Counter-rotation damping valve
Automatic swing parking brake
High-performance hydraulic return filter
Two-speed travel
Compatible with bio hydraulic oil

Undercarriage and structure
Underframe towing eye
9000 kg (19842 lb) counterweight

Electrical system
Maintenance-free 1000 CCA batteries (2)
Centralized electrical disconnect switch
LED external lights

Service and maintenance
Integrated machine monitoring system
Grouped engine oil and fuel filters
Scheduled oil sample (S·O·S) ports

Safety and security devices
Caterpillar single-key security system
Lockable security doors, fuel tank, and hydraulic tank locks
Lockable drain compartments
Service platform with anti-slip plates and embedded bolts
Right-side handrails and grab handles
Rearview mirror kit
Signal/warning horn
Ground-level engine stop switch
Rearview camera
Lockable disconnect switch

Optional Equipment

Standard equipment and optional equipment may vary. For more information, please consult your Cat dealer.
Cab
Operator Protective Guard (OPG)
Engine
Cold start block heater
-32° C (-25° F) cold start capability
Undercarriage system and structure
600 mm (24″) double grouser track shoes
600 mm (24″) heavy-duty double grouser track shoes
750 mm (30″) double grouser track shoes
750 mm (30″) triple grouser track shoes
Boom and stick
6.9 m (22’8″) extended boom
6.55 m (21’6″) high-capacity boom
2.9 m (9’6″) extended stick
3.35 m (11’0″) extended stick
3.0 m (9’10”) high-capacity stick
2.5 m (8’2″) high-capacity stick
