Technical Specifications

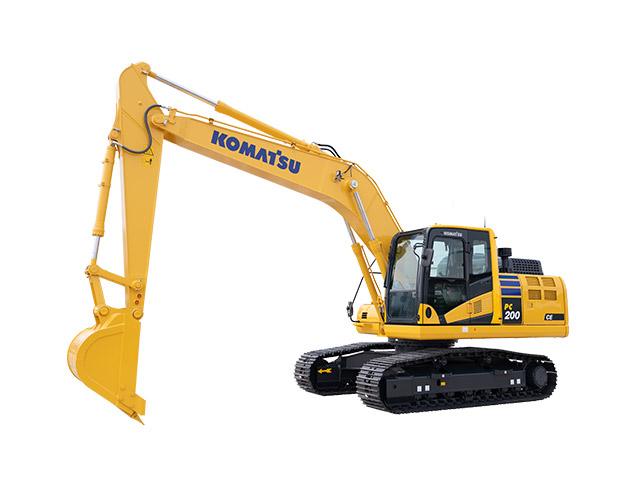

Model		PC200-11M1
Item	Unit	Standard Specification
Operating Weight	kg	20100
Total Power	kW	108
Bucket Capacity	m³	0.94~1.06
Max. Travel Speed	km/h (High)	5.5
	km/h (Medium)	4.1
	km/h (Low)	3.0
Max. Bucket Digging Force	kN	149
Max. Arm Digging Force	kN	108
Overall Length	mm	9480
Overall Width	mm	2800
Overall Height (to Cab Top)	mm	3045
Max. Digging Height	mm	10065
Max. Dumping Height	mm	7160
Max. Digging Depth	mm	6515
Max. Vertical Digging Depth	mm	5810
Max. Digging Radius	mm	9860
Max. Digging Radius at Ground Level	mm	9680
Engine Model	–	Komatsu DLA045 Engine
Rated Engine Speed	rpm	2200
Displacement	L	4.5
