Technical Specifications

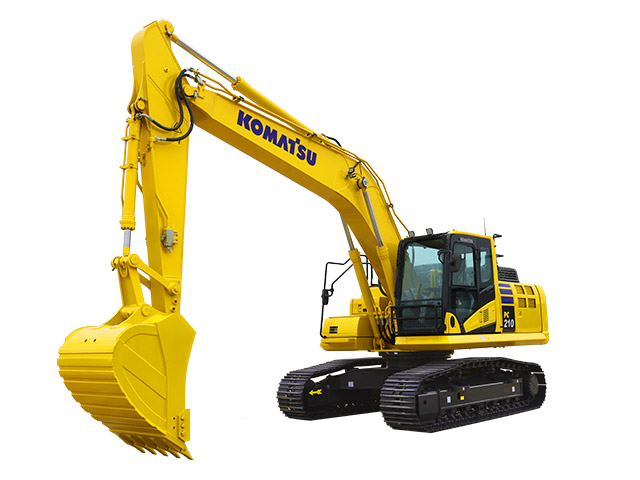

Model		PC210-11M0
Item	Unit	Standard Specification
Operating Weight	kg	22400~22800
Total Power	kW(PS)	123.2 (168)
Bucket Capacity	m³	1.00~1.20
Max. Travel Speed	km/h (High)	5.5
	km/h (Medium)	4.1
	km/h (Low)	3.0
Max. Bucket Digging Force	kN	149
Max. Arm Digging Force	kN	108
Overall Length	mm	9705
Overall Width	mm	2800
Overall Height (to Cab Top)	mm	3045
Max. Digging Height	mm	10000
Max. Dumping Height	mm	7110
Max. Digging Depth	mm	6620
Max. Vertical Digging Depth	mm	5980
Max. Digging Radius	mm	9875
Max. Digging Radius at Ground Level	mm	9700
Engine Model	–	SAA6D107E-3
Rated Engine Speed	rpm	2000
Displacement	L	6.69
