Technical Specifications

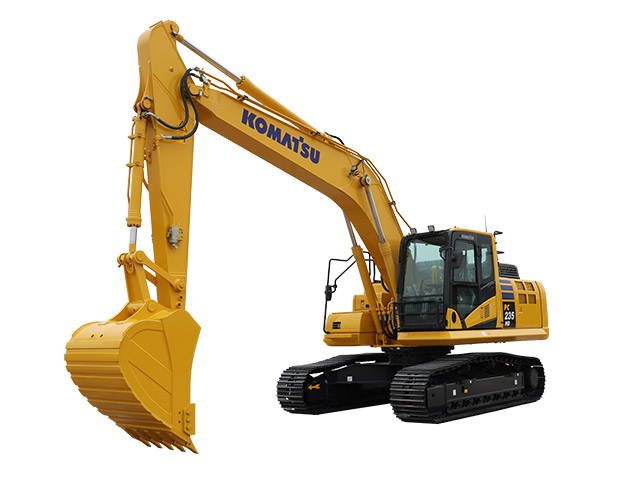

Model		PC235HD-11M0
Operating Weight	kg	23500
Total Power	kW(PS)	123.2 (168)
Bucket Capacity	m³	1.20~1.30
Max. Travel Speed	High Speed (km/h)	5.5
	Medium Speed (km/h)	4.1
	Low Speed (km/h)	3.0
Max. Bucket Digging Force	kN	149
Max. Arm Digging Force	kN	108
Overall Length	mm	9705
Overall Width	mm	2980
Overall Height (to cab top)	mm	3045
Max. Digging Height	mm	10050
Max. Dumping Height	mm	7060
Max. Digging Depth	mm	6570
Max. Vertical Digging Depth	mm	6010
Max. Digging Radius	mm	9925
Max. Digging Radius at Ground Level	mm	9730
Engine Model	–	SAA6D107E-3
Rated Engine Speed	rpm	2000
Engine Displacement	L	6.69
