Technical Specifications

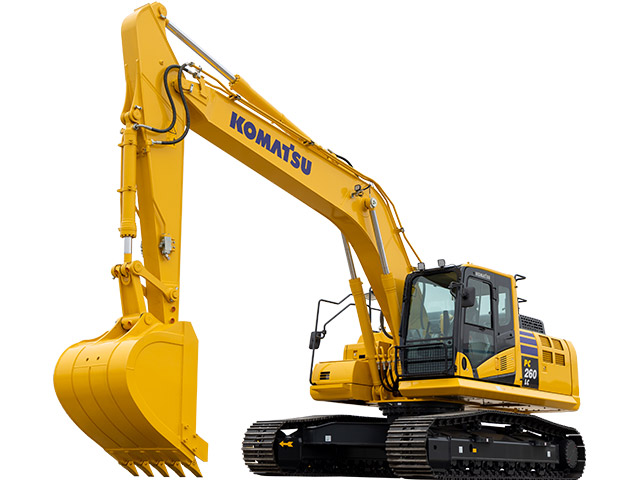

Model		PC260LC-11M0
Operating Weight	kg	26000~26600
Total Power	kW(PS)	141.2 (192)
Bucket Capacity	m³	1.40~1.60
Max. Travel Speed	High Speed (km/h)	5.5
	Medium Speed (km/h)	4.1
	Low Speed (km/h)	3.0
Max. Bucket Digging Force	kN	172
Max. Arm Digging Force	kN	129
Overall Length	mm	9965
Overall Width	mm	3180
Overall Height (to cab top)	mm	3055
Max. Digging Height	mm	10050
Max. Dumping Height	mm	7060
Max. Digging Depth	mm	6920
Max. Vertical Digging Depth	mm	6010
Max. Digging Radius	mm	10180
Max. Digging Radius at Ground Level	mm	10020
Engine Model	–	SAA6D107E-3
Rated Engine Speed	rpm	2000
Engine Displacement	L	6.69
