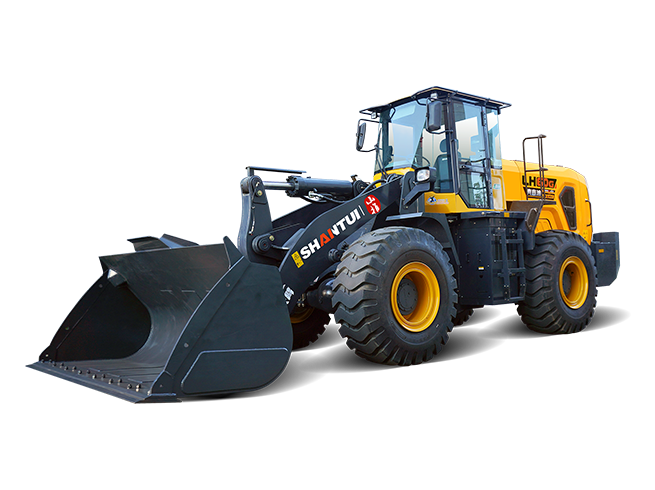

L68K-G Wheel Loader

• Operating Weight / Rated Load Capacity  23100 kg / 6800 kg
• Bucket Capacity  4 m³ (3.5–5.5)
• Power / Rated Speed  192 kW / 2100 rpm

• • The Shantui loader is exclusively equipped with a low-speed, high-torque Weichai diesel engine, adopting the latest WP10H platform. It is advanced and reliable, delivering strong power, high efficiency and fuel economy, quiet and comfortable operation, as well as intelligent environmental protection. Compared with the WP10 platform, the engine oil consumption is reduced by 10%.
  • Three power control modes (idle, medium-load, heavy-load) are available to meet the requirements of different working conditions, resulting in low overall fuel consumption.
  • The water trap with water level alarm function reminds users to drain water in a timely manner, further improving the overall reliability of the machine.
  • The 330L large-capacity diesel fuel tank is mounted at the rear, meeting the demand for continuous operation while significantly improving the stability of the whole machine.

Transmission System

• Custom-built exclusively for Shantui loaders, the specially designed planetary transmission delivers fast travel speed and a traction force of up to 205 kN, boosting overall operating efficiency by more than 15%.
• The reinforced drive axle features strong load-bearing capacity. The rear axle is oscillating, enabling excellent stability in harsh working conditions. The front axle is equipped with 4 brake calipers, delivering a larger braking torque and significantly improving safety.
• Through perfect matching with the engine, torque converter, drive shaft, and drive axle, maximum operating efficiency is achieved, with excellent acceleration and fast response.
• In combined working conditions (when traveling and operating simultaneously), the traction force and lifting force are substantial, resulting in strong burst performance and high operating efficiency.

Structural Components

• The front and rear frames adopt a reinforced structure, offering high strength and long service life. With a wheelbase of 3500mm, the machine operates and travels more stably.
• The large-opening hinge joint disperses stress, is easy to maintain, and has strong load-bearing capacity. Both upper and lower hinges use double-row tapered roller bearings, providing greater load capacity and better adaptability to harsh working conditions.
• The wheel alignment design ensures the front and rear wheels follow the same track, reducing steering resistance, lowering energy consumption, and extending tire life.
• The optimized and designed high-efficiency linkage mechanism operates quickly and delivers a breakout force of up to 205kN, resulting in strong lifting capacity.
• The work equipment features a high-strength design with enlarged pin shafts to eliminate local weak points, ensuring it meets the requirements of various working conditions. A rich range of work equipment configurations is available to meet diverse needs. The bucket is reinforced and modified, greatly improving the fill factor.

Electrical System: Intelligent and Reliable

• The new stepping digital combination instrument enables convenient reading of vehicle information, providing timely and accurate real-time data. It supports self-diagnosis and fault alarm, ensuring efficient and safe operation of the main machine.
• The independent foldable steering column offers more comfortable operation.
• The integrated relay and fuse box simplifies inspection and maintenance, leading to more reliable performance.
• The transmission is controlled via a two-in-one lever, while the work equipment adopts pilot hydraulic control, ensuring light, precise, and flexible operation.
• The Chinese voice alarm and air horn enhance safety, making it more suitable for crowded vehicle and personnel sites.
• LED front and rear work lights are adopted, delivering strong illumination and a long service life. The cab is equipped with an LED reading light and an entertainment audio system.

Ease of Maintenance

• The air reservoir is located on the right side of the climbing ladder, making water drainage simple and convenient.
• Greasing of the pin shafts can be completed from the ground, simplifying maintenance.
• The entire machine is equipped with large-opening side hoods, providing ample maintenance space and ensuring smooth and convenient access for servicing.
• The air filter, fuel filter, oil filter, and transmission oil filter are all easily accessible. Additionally, a fuel water level alarm function is provided to remind the operator to perform regular water drainage maintenance, protecting the engine.
