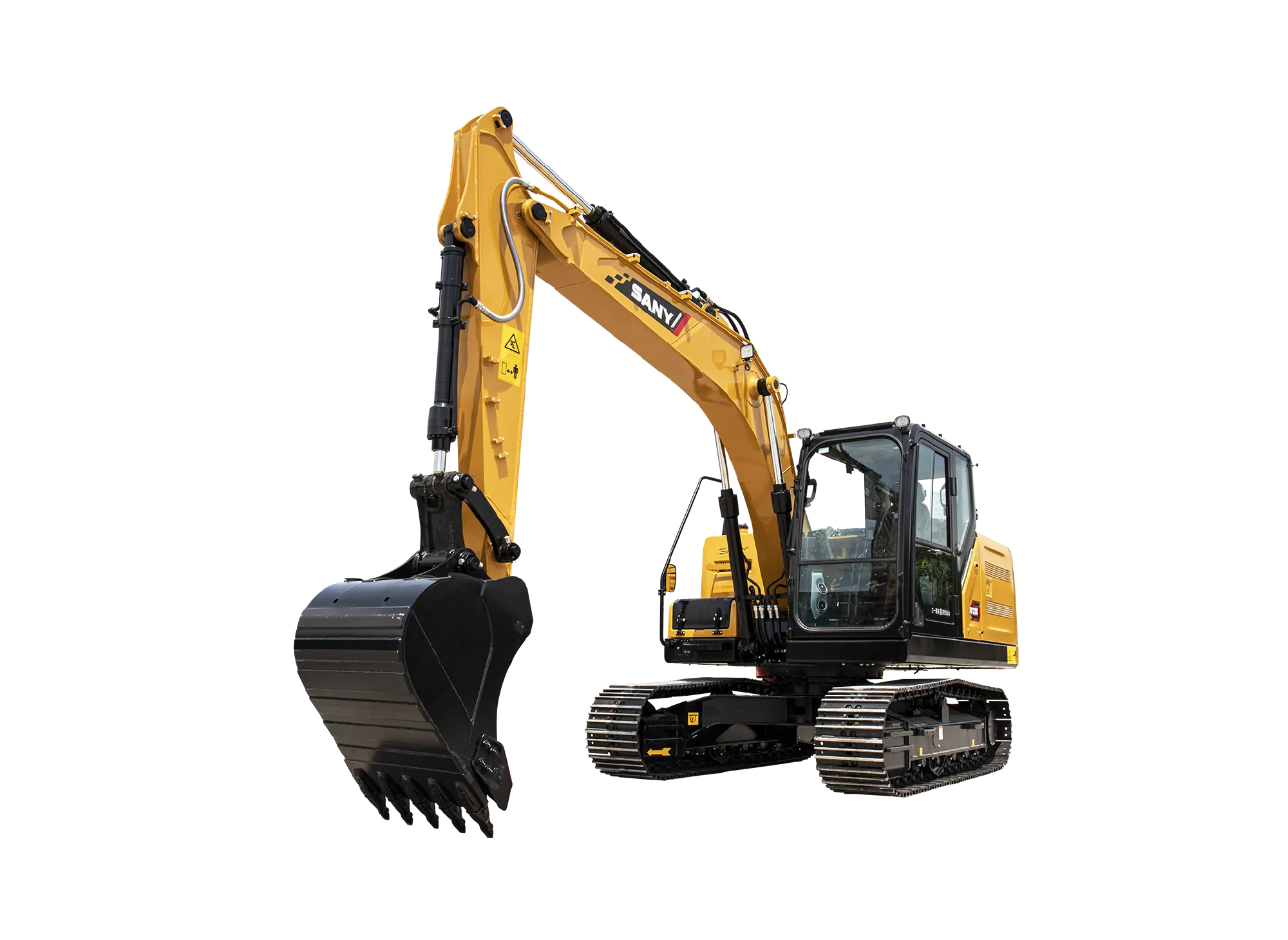

Product Details

Total Machine Weight
12,500 kg
Bucket Capacity
0.54 m³
Power
95/2200 kW/rpm

Applicable working conditions

Digging trenches
Excavating foundations
Pipeline construction
Municipal utilities

Core Configuration

Power System

Equipped with a Cummins QSF4.5 engine with a rated power of 89kW, it provides greater reserve power and torque, ensuring ample power supply. A dedicated aftertreatment control strategy delivers cleaner emissions, fully complying with China National Stage IV (China IV) emission regulations.Combined with high-pressure common rail electronic injection technology, it achieves millisecond-level precise control of fuel injection, ensuring complete fuel combustion and lower fuel consumption.

Hydraulic System

It is equipped with a positive flow hydraulic system, enabling precise power matching and enhanced overall energy efficiency. Premium brand large-displacement main pumps, high-performance main control valves, and large-bore valve spools are adopted, offering greater flow capacity and lower pressure loss, which comprehensively improve the machine’s controllability and fuel economy.

Performance parameters

Item	Unit	Value
Operating Weight	kg	12500
Bucket Capacity	m³	0.54
Engine Model	–	Cummins QSF4.5
Rated Power	kW/rpm	89/2200 (95/2200)
Maximum Torque	N·m/rpm	500 / (1300-1700)
Displacement	L	4.5
Gradeability	% / °	70 / 35
Swing Speed	rpm	12
Ground Pressure	kPa	41.6
Bucket Digging Force	kN	100
Arm Digging Force	kN	62
Travel Speed	km/h	5.5 / 3.5
Standard Track Shoe Width	mm	500
Carrier Rollers per Side	pcs	1
Track Plates	pcs	41
Track Rollers per Side	pcs	7
Final Drive Capacity (per side)	L	2×2.6
Fuel Tank Capacity	L	280
Hydraulic Oil Tank Capacity	L	150
Engine Oil Capacity	L	13
Radiator Capacity	L	30
Standard Operating Weight	kg	12500
Standard Bucket Capacity	m³	0.54
Standard Rated Power	kW/rpm	95/2200

Product Selling Points

Power System: Equipped with a Cummins QSF4.5 engine, with a rated power of 95 kW. The engine power and torque margin are greater, providing more sufficient power;
Hydraulic System: Equipped with a positive flow hydraulic system to achieve precise power matching. Uses a high-displacement main pump, high-performance main valve, and large-diameter main valve core, resulting in greater flow capacity and lower pressure loss;
DPD EGR Technology Route: Part of the exhaust gas is recirculated into the intake system, mixed with fresh air for combustion, inhibiting NOx formation. The EGR is upgraded from a tubular type to a stacked type, allowing faster cooling;
Upgraded Cabin: Seat upgrade, air-conditioning upgrade, audio-visual entertainment upgrade, comfort configuration upgrade.
