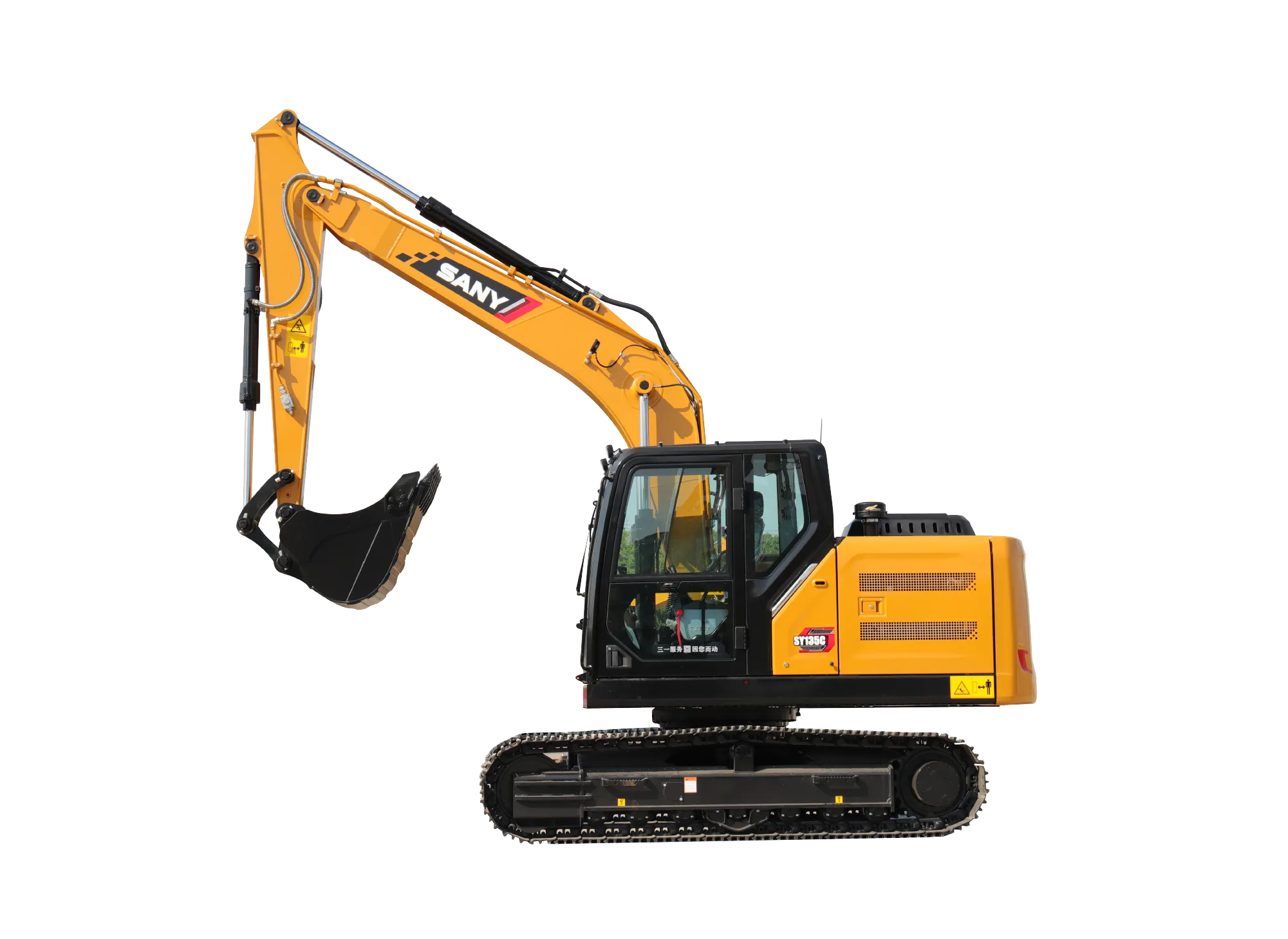

Product Details

Total Machine Weight
13,500 kg
Bucket Capacity
0.6 m³
Power
86/2200 kW/rpm

Applicable working conditions

Digging trenches
Excavating foundations
Pipeline construction
Municipal utilities

Core Configuration

Power System

Equipped with an Isuzu 4JJ1 engine with a rated power of 86kW, it provides greater reserve power and torque, ensuring ample power supply for the machine.

Positive Flow Hydraulic System

It adopts well-known brand large-displacement main pumps, high-performance main control valves, and large-bore valve spools. This design offers greater flow capacity and lower pressure loss, comprehensively improving the machine’s controllability and fuel economy.

Performance parameters

Item	Unit	Value
Operating Weight	kg	13500
Bucket Capacity	m³	0.6
Engine Model	–	Isuzu 4JJ1
Rated Power	kW/rpm	86/2200
Maximum Torque	N·m/rpm	375/1800
Displacement	L	2.999
Gradeability	% / °	70 / 35
Swing Speed	rpm	12
Ground Pressure	kPa	41.7
Bucket Digging Force	kN	103
Arm Digging Force	kN	67
Travel Speed	km/h	5.5 / 3.5
Standard Track Shoe Width	mm	500
Carrier Rollers per Side	pcs	1
Track Plates	pcs	44
Track Rollers per Side	pcs	7
Final Drive Capacity (per side)	L	2×2.6
Fuel Tank Capacity	L	280
Hydraulic Oil Tank Capacity	L	200
Engine Oil Capacity	L	15
Radiator Capacity	L	30
Standard Operating Weight	kg	13500
Standard Bucket Capacity	m³	0.6
Standard Rated Power	kW/rpm	86/2200

Product Selling Points

Power System: Equipped with Isuzu 4JJ1 engine, rated power 86kW, with higher engine power and torque margin to ensure sufficient power;
Positive Flow Hydraulic System: Well-known brand large displacement main pump, high-performance main valve, large-diameter main valve core, with greater flow capacity and lower pressure loss, comprehensively improving overall machine operability and fuel efficiency;
DPD EGR Technology Route: Part of the exhaust gas is recirculated into the intake system and mixed with fresh air for combustion, suppressing NOx formation. The EGR is upgraded from tubular type to stratified type, cooling faster;
Brand New Driving and Riding Environment: Equipped with a 10-inch display screen, rear camera, and one-key start; standard features include cup holder and phone platform, sunroof visor, 12V power outlet, integrated Bluetooth call USB interface, and audio-visual entertainment functions; the control panel has been optimized, and the space for the travel joystick operation is larger and more comfortable.
