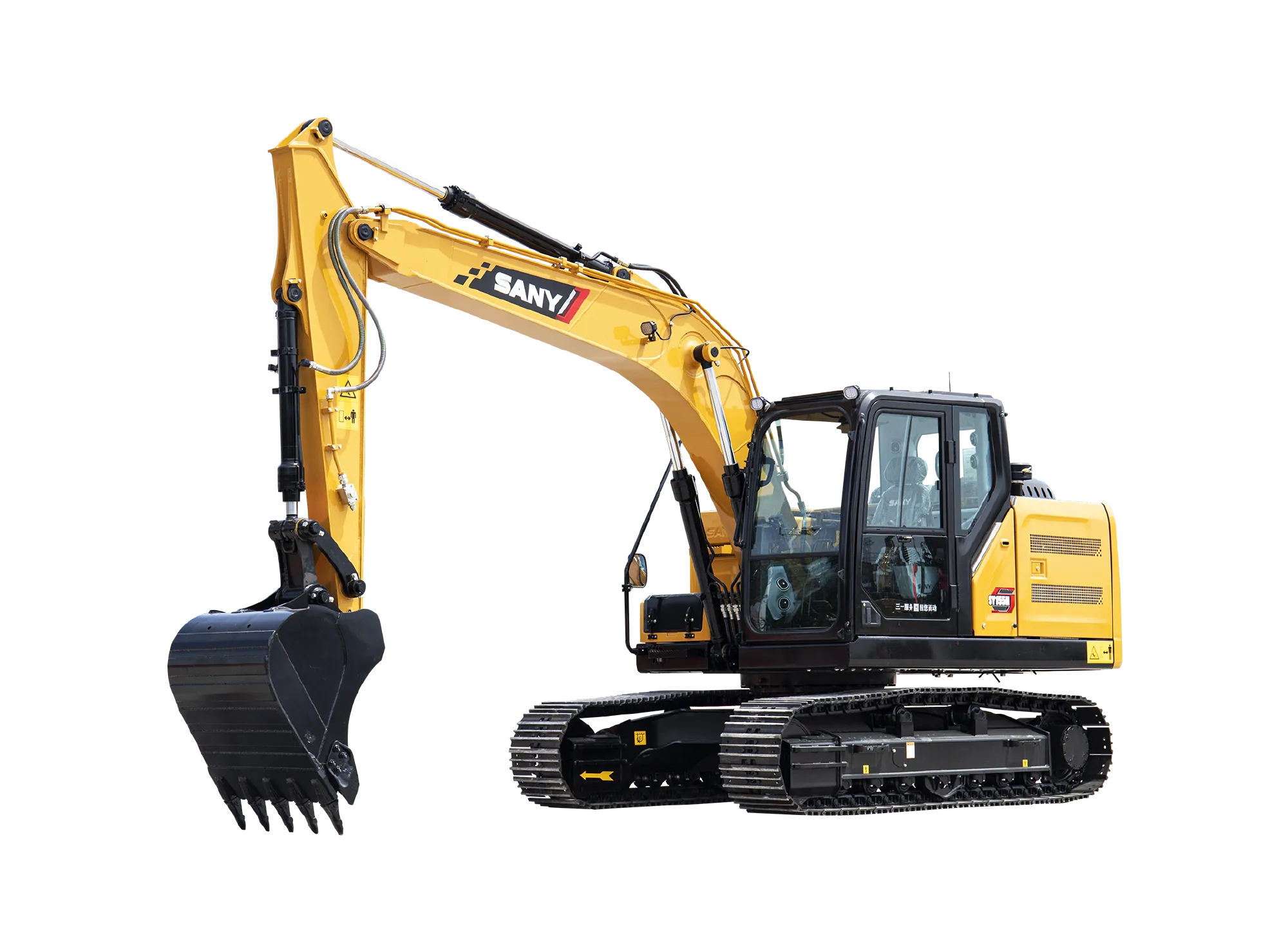

Product Details

Total Machine Weight
14100 kg
Bucket Capacity
0.65 m³
Power
86/2200 kW/rpm

Applicable working conditions

Municipal Utilities
Pipeline Construction
Foundation Excavation
Earth and Stone Works

Core Configuration

Power System

Equipped with an Isuzu 4JJ1 engine delivering 86kW of power, it adopts a dedicated aftertreatment control strategy for cleaner emissions. Combined with high-pressure common rail electronic injection technology, it achieves millisecond-level precise control of fuel injection, ensuring full combustion and lower fuel consumption.

Hydraulic System

It is equipped with a positive flow hydraulic system, enabling precise power matching and enhanced overall energy efficiency. Premium brand large-displacement main pumps, high-performance main control valves, and large-bore valve spools are adopted, offering greater flow capacity and lower pressure loss, which comprehensively improve the machine’s controllability and fuel economy.

Performance parameters

Item	Unit	Value
Operating Weight	kg	14100
Bucket Capacity	m³	0.65
Engine Model	–	Isuzu 4JJ1
Rated Power	kW/rpm	86/2200
Maximum Torque	N·m/rpm	375/1800
Displacement	L	2.999
Gradeability	% / °	70 / 35
Swing Speed	rpm	12
Ground Pressure	kPa	43
Bucket Digging Force	kN	103
Arm Digging Force	kN	67
Travel Speed	km/h	5.5 / 3.5
Standard Track Shoe Width	mm	500
Carrier Rollers per Side	pcs	2
Track Plates	pcs	45
Track Rollers per Side	pcs	7
Final Drive Capacity (per side)	L	2×2.6
Fuel Tank Capacity	L	280
Hydraulic Oil Tank Capacity	L	200
Engine Oil Capacity	L	15
Radiator Capacity	L	30
Standard Operating Weight	kg	14100
Standard Bucket Capacity	m³	0.65
Standard Rated Power	kW/rpm	86/2200

Product Selling Points

Power system: Isuzu 4JJ1 engine, rated power 86 kW. Uses an aftertreatment control strategy combined with high-pressure common rail fuel injection technology to achieve millisecond-level precise control of fuel injection;
Hydraulic system: Positive flow hydraulic system achieves precise power matching and overall energy efficiency improvement, using branded large-displacement main pump and main valve, large-diameter main valve core, high flow capacity with low pressure loss, enhancing overall machine operability and fuel economy;
Heavy-duty boom: Heavy-duty boom design with reinforcement plates at the middle support;
Heavy-duty bucket: Bucket capacity 0.65 m³, bucket width 1000 mm, heavy-duty design with thicker side plates and front cutting edge with flange design;
DPD EGR technology route: Part of the exhaust gas recirculates into the intake system to mix with fresh air for combustion, suppressing NOx formation. EGR is upgraded from tubular to layered type for faster cooling;
New experience: Optimized air conditioning ducts, upgraded seat, 10-inch display screen, rear camera, one-key start, mobile platform, sunroof sunshade, 24V power outlet, integrated Bluetooth calling, USB interface, and other functions.
