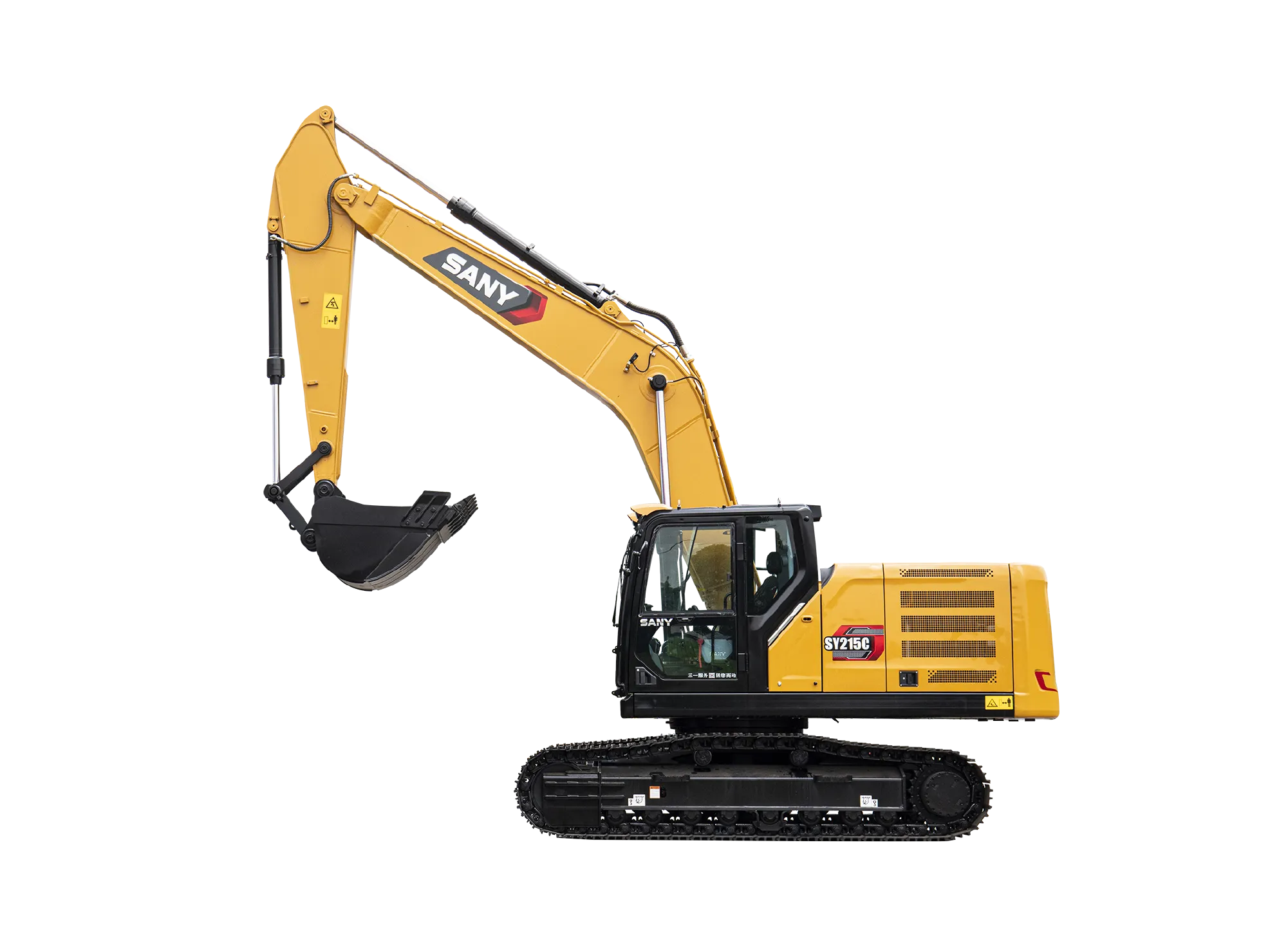

Product Details

Total Machine Weight
21,900 kg
Bucket Capacity
1.1 m³
Power
118/2000 kW/rpm

Applicable working conditions

Earth and Rockworks
Rockworks
Railway/ Tunnel Construction
Municipal Utilities
Landscape and Greening

Power System

Equipped with a Mitsubishi Fuso 4M50 engine with a rated power of 118kW, it delivers high torque, exceptional durability, and faster dynamic response.

Hydraulic System

It is equipped with Kawasaki fully electronic control main valve and main pump, realizing arm regeneration and rapid oil return. Precise control of the valve spool improves the machine’s digging energy efficiency and operability.The piston pump displacement is increased from 112cc to 125cc, delivering a significant boost in flow capacity.The newly upgraded RG14D swing reducer enhances swing capacity, improves slope operation capability, and accelerates swing startup speed.

DPD+EGR Technology

A portion of exhaust gas is recirculated into the intake system and mixed with fresh air for combustion, which suppresses the formation of NOx. The EGR (Exhaust Gas Recirculation) system is upgraded from a tubular type to a laminated type, enabling faster cooling.

Fully Electronic Control Hydraulic System

It adopts HOPE fully electronic control technology, enabling the controller to precisely control the valve core, which improves the machine’s digging energy efficiency and controllability. A brand-new hydraulic circuit is employed to reduce oil return power loss, achieving high efficiency and low fuel consumption.

Performance parameters

Item	Unit	Value
Operating Weight	kg	21900
Bucket Capacity	m³	1.1
Rated Power	kW/rpm	118/2000
Overall Length (Transport)	mm	9680
Overall Width	mm	2980
Overall Height (Transport)	mm	3440
Upper Width	mm	2728
Overall Height (Cab Top)	mm	3100
Standard Track Shoe Width	mm	600
Track Gauge	mm	2380
Wheelbase	mm	–
Minimum Ground Clearance	mm	470
Tail Swing Radius	mm	2870
Track Ground Contact Length	mm	3445
Counterweight Clearance	mm	–
Track Length	mm	4250
Dozer Blade Width	mm	–
Travel Speed (High/Low)	km/h	5.4 / 3.4
Swing Speed	rpm	11.6
Gradeability	% / °	70 / 35
Ground Pressure	kPa	47.4
Bucket Digging Force	kN	138
Arm Digging Force	kN	103
Max Digging Height	mm	9600
Max Dumping Height	mm	6730
Max Digging Depth	mm	6600
Max Digging Radius	mm	3730
Max Straight Arm Digging Depth	mm	10280
Max Ground Digging Radius	mm	–
Max Digging Reach	mm	–
Max Height at Min Swing Radius	mm	–
Max Vertical Digging Depth	mm	–
Minimum Swing Radius	mm	7680

Product Selling Points

1. New Power
· Equipped with Mitsubishi Fuso 4M50 engine, rated power reaching 118 kW, high torque, and durable;
· Equipped with Kawasaki fully electronic main valve and main pump, enabling boom regeneration and fast oil return, and precise control over the valve core, improving overall machine excavation efficiency and operability.

2. New Technology
· DPD EGR technology suppresses Nox generation, EGR upgraded from tubular to stacked type for faster cooling;
· Uses HOPE fully electronic control technology and a brand-new hydraulic circuit to improve overall machine excavation efficiency and operability, while reducing oil return power loss, providing high efficiency and low fuel consumption;
· Bucket upgrade, standard with earth-moving bucket, optional rock bucket, achieving “one condition, one bucket”.

3. New Design
· 10 o’clock large screen upgraded again, higher system integration, and equipped with WLAN in the cab;
· Equipped with a brand-new air conditioning system, stronger cooling effect, more reasonable air volume distribution;
· Interior fully upgraded, including narrow armrest box, minimalist front control box, 24V power socket, USB interface, with car-quality interior.
Product Manual（Click here）
