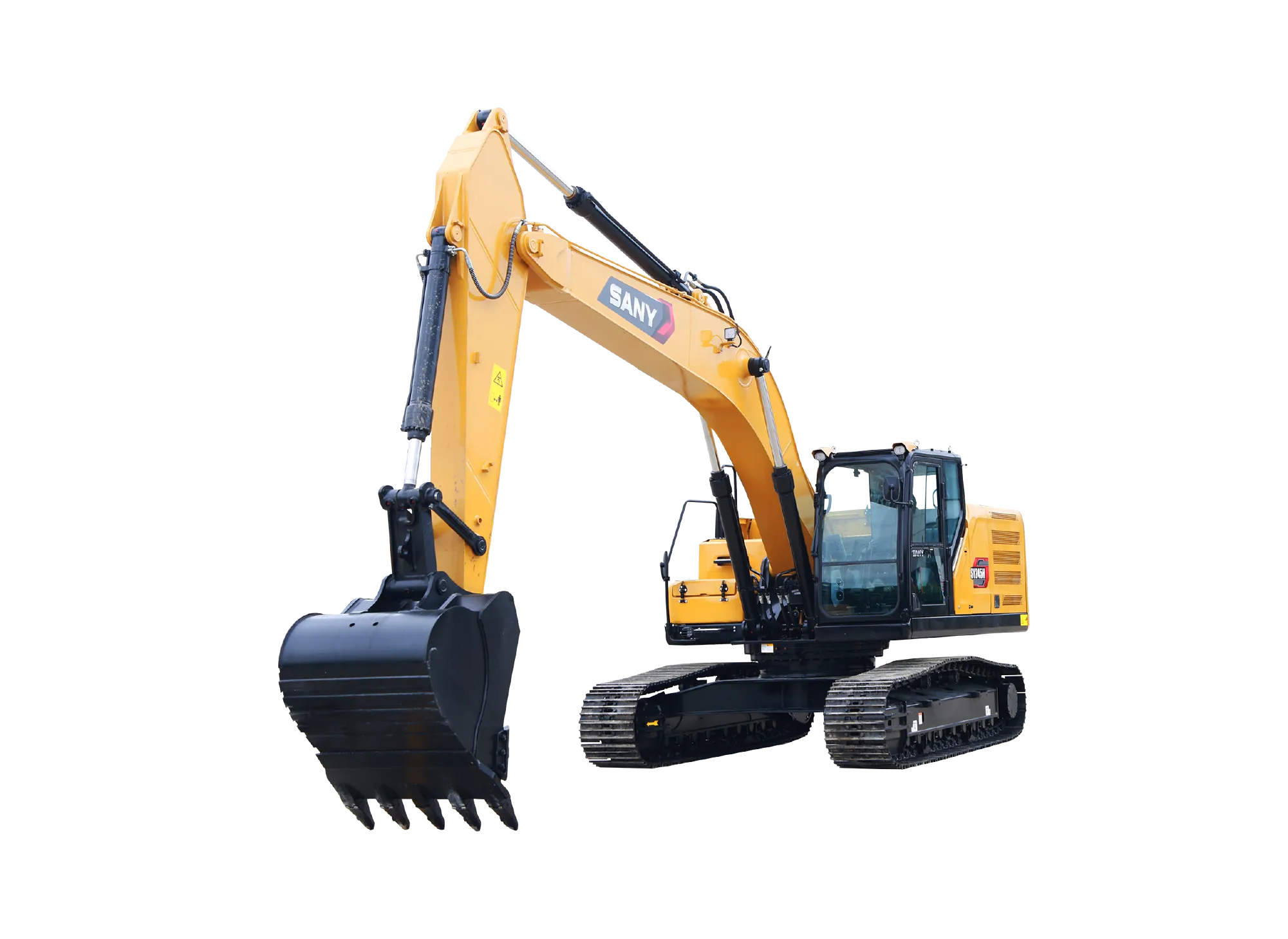

Product Details

Total Machine Weight
25500kg
Bucket Capacity
1.4m³
Power
150/2000kW/rpm

Applicable working conditions

Earth and stone works
Rock works
Mining
Excavating foundations
Building construction
Municipal utilities
Landscape architecture
Mining

Power System

Equipped with a Cummins B7 engine with a rated power of 150kW, it delivers robust power, high speed, and exceptional efficiency, while ensuring enhanced durability and reliability for the entire machine.

Hydraulic System

It adopts a Kawasaki fully electronic control hydraulic system. The main pump features outstanding advantages such as “low noise, high efficiency, and high pressure”. The main control valve offers large flow capacity, effectively reducing energy loss in the hydraulic system and significantly improving operational performance.

Fully Electronic Control Hydraulic System

It adopts HOPE fully electronic control technology, enabling the controller to precisely control the valve spool, thereby improving the machine’s digging energy efficiency and controllability. A brand-new hydraulic circuit is utilized to reduce return oil power loss, resulting in high operational efficiency and low fuel consumption.

SCR Technology Route*

It reacts with particulate matter (PM) through the urea supply system. Precise control over intake air, exhaust gas, and fuel injection volume is implemented to reduce fuel consumption.

Performance parameters

Item	Unit	Value
Operating Weight	kg	25500
Bucket Capacity	m³	1.4
Rated Power	kW/rpm	150/2000
Overall Length (Transport)	mm	10290
Overall Width	mm	3190
Overall Height (Transport)	mm	3255
Upper Width	mm	3045
Overall Height (Cab Top)	mm	3255
Standard Track Shoe Width	mm	600
Track Gauge	mm	2590
Wheelbase	mm	–
Minimum Ground Clearance	mm	470
Tail Swing Radius	mm	2930
Track Ground Contact Length	mm	3640
Counterweight Clearance	mm	–
Track Length	mm	4445
Dozer Blade Width	mm	–
Travel Speed (High/Low)	km/h	5.8 / 3.7
Swing Speed	rpm	10
Gradeability	% / °	70 / 35
Ground Pressure	kPa	52.5
Bucket Digging Force	kN	175 (187)
Arm Digging Force	kN	120 (129)
Max Digging Height	mm	9745
Max Dumping Height	mm	6870
Max Digging Depth	mm	6705
Max Digging Radius	mm	10225
Max Straight Arm Digging Depth	mm	5675
Max Ground Digging Radius	mm	–
Max Digging Reach	mm	–
Max Height at Min Swing Radius	mm	8016
Max Vertical Digging Depth	mm	–
Minimum Swing Radius	mm	3800

Product Selling Points

1. New power
Equipped with Cummins engine, rated power of 150kW, the whole machine is powerful, fast, efficient, durable and more reliable;
Kawasaki fully electronically controlled hydraulic system, the main pump has outstanding advantages such as “low noise, high efficiency, and high pressure”, which effectively reduces the energy loss of the hydraulic system and greatly improves the operating performance.
2. New technology
· HOPE fully electronic control technology and new hydraulic circuit realize the precise control of the valve spool by the controller, and reduce the loss of oil return power, with high efficiency and low fuel consumption;
The urea supply system reacts to particulate matter and PM, reducing fuel consumption through precise control of fuel injection volume;
Bucket upgrade, standard earthwork bucket, optional rock bucket to achieve “one situation one bucket”.
3. New shape
The cab has been comprehensively upgraded from appearance to user experience to create a “first-class” driving environment;
The large screen at 10 o’clock is upgraded again, with a higher degree of system integration and wireless LAN in the car.
