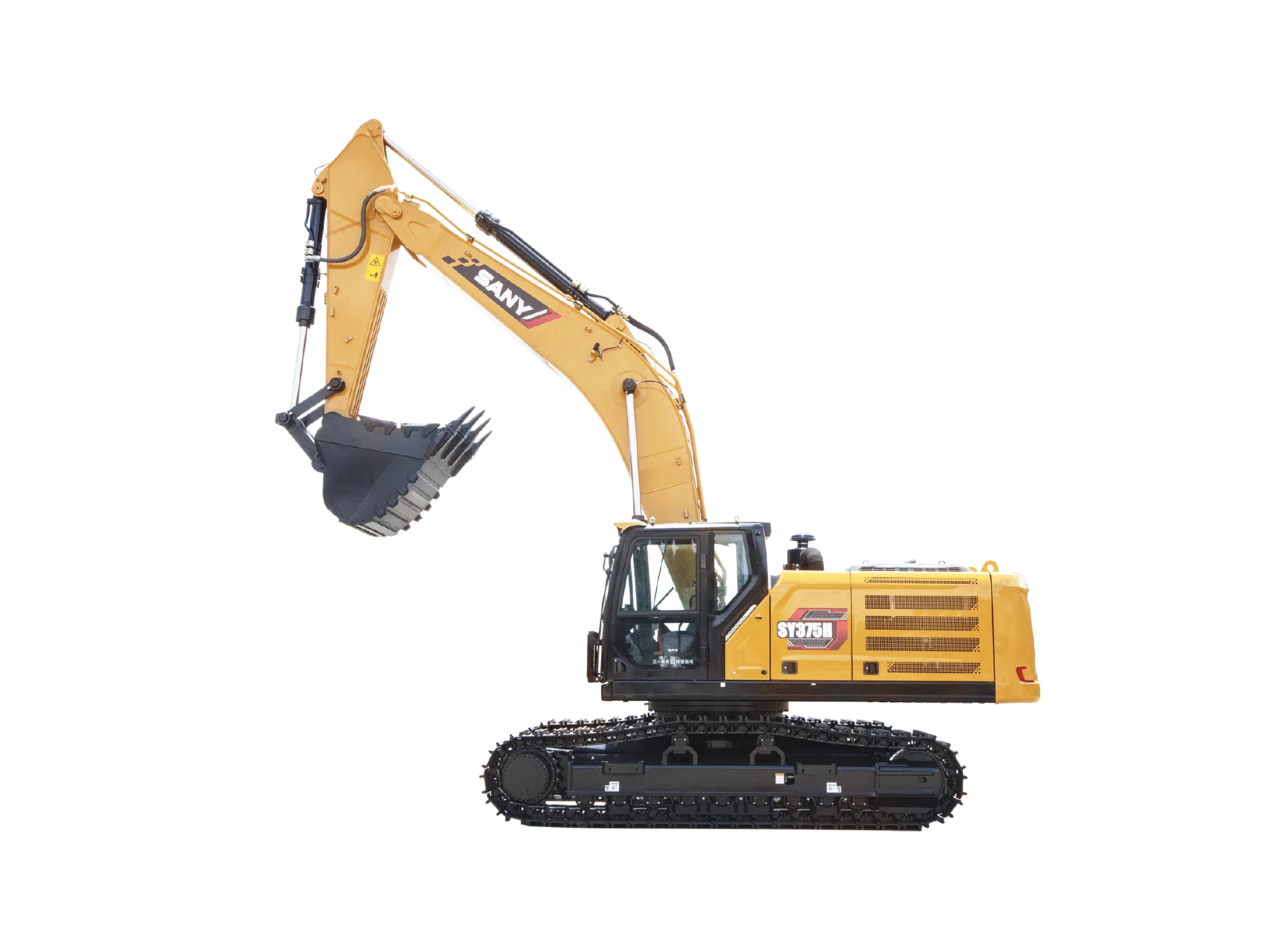

SY375H-S Large Hydraulic Excavator
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Product Details
Total Weight
38000 kg
Bucket Capacity
2.15 m³
Power
210/1900 kW/rpm
Applicable working conditions
Earth and rock engineering
Rock engineering
Mining
Power System
Equipped with an Isuzu 6HK1X engine with a rated power of 210kW, it delivers robust and powerful performance, helping customers solve challenges under heavy-duty working conditions.
Hydraulic System
It is equipped with main pumps and main valves from renowned brands. The main pump displacement is upgraded to 180cc, resulting in faster overall operation. The large-bore main valve features high flow capacity, reduced pressure loss, and improved energy efficiency.
DPD+EGR Technology Route
A portion of exhaust gas is recirculated into the intake system and mixed with fresh air for combustion, which suppresses the formation of NOx. The EGR (Exhaust Gas Recirculation) system is upgraded from a tubular type to a laminated type, enabling faster cooling.
Whole Machine Control System
It adopts a “positive flow” system and Sany’s independently developed “DMOS” (Dynamic Matching & Optimization System) engine-pump-valve integrated dynamic optimization intelligent control system, achieving the operational efficiency of a 40-ton machine with the fuel consumption of a 30-ton machine.
Whole Machine Control System
Adopts a “positive flow” system and the independently developed “DMOS” engine-pump-valve integrated dynamic optimization intelligent control system by Sany, achieving the efficiency of a 40-ton machine and the fuel consumption of a 30-ton machine.
Performance Parameters
| Item | Unit | Value |
|---|---|---|
| Operating Weight | kg | 38000 |
| Bucket Capacity | m³ | 2.15 |
| Rated Power | kW/rpm | 210/1900 |
| Engine Model | – | Isuzu 6HK1 |
| Engine Type | – | Direct Injection, 6-Cylinder 4-Stroke, Turbocharged Intercooled, Water-Cooled |
| Displacement | L | 7.79 |
| Maximum Torque | N·m/rpm | 1080/1500 |
| Engine Rated Power | kW/rpm | 210/1900 |
| Travel Speed (High/Low) | km/h | 5.0 / 3.0 |
| Swing Speed | rpm | 9.2 |
| Gradeability | ° | 35 |
| Ground Pressure | kPa | 68.8 |
| Bucket Digging Force | kN | 235 |
| Arm Digging Force | kN | 210 |
| Fuel Tank Capacity | L | 620 |
| Engine Oil Capacity | L | 41 |
| Radiator Capacity | L | 28 |
| Final Drive Capacity (per side) | L | 2×8.5 |
| Track Plates (per side) | pcs | 49 |
| Track Rollers per Side | pcs | 9 |
| Carrier Rollers per Side | pcs | 2 |
| Standard Track Shoe Width | mm | 600 |
Product Selling Points
Power System: Isuzu 6HK1X engine, rated power 210KW, provides strong power to solve heavy-duty problems.
Hydraulic System: Well-known brand main pump and main valve, main circuit displacement upgraded to 180cc, large-diameter main valve, high flow capacity, reduced pressure loss.
DPD EGR Technology Route: Part of the exhaust gas is recirculated into the intake system, mixed with fresh air for combustion, suppressing NOx formation; EGR upgraded from tubular type to layered type, cooling faster.
Whole Machine Control System: Adopts a “positive flow” system and Sany’s self-developed “DMOS” engine-pump-valve integrated dynamic optimization intelligent control system, achieving 40-ton efficiency and 30-ton fuel consumption.
Bucket Upgrade: Bucket teeth upgraded to 4-tooth pointed bucket teeth, front cutting edge thickened to 60mm; 4 series of buckets can be configured.
C12 Cab: Five major functions: intelligent networking, intelligent interaction, intelligent construction, intelligent driving and riding, intelligent maintenance; upgraded intelligent system and display screen; optimized air conditioning, etc.
Product Manual（Click here）
