XCMG XC870K/XC870HK Backhoe Loader – Product Introduction

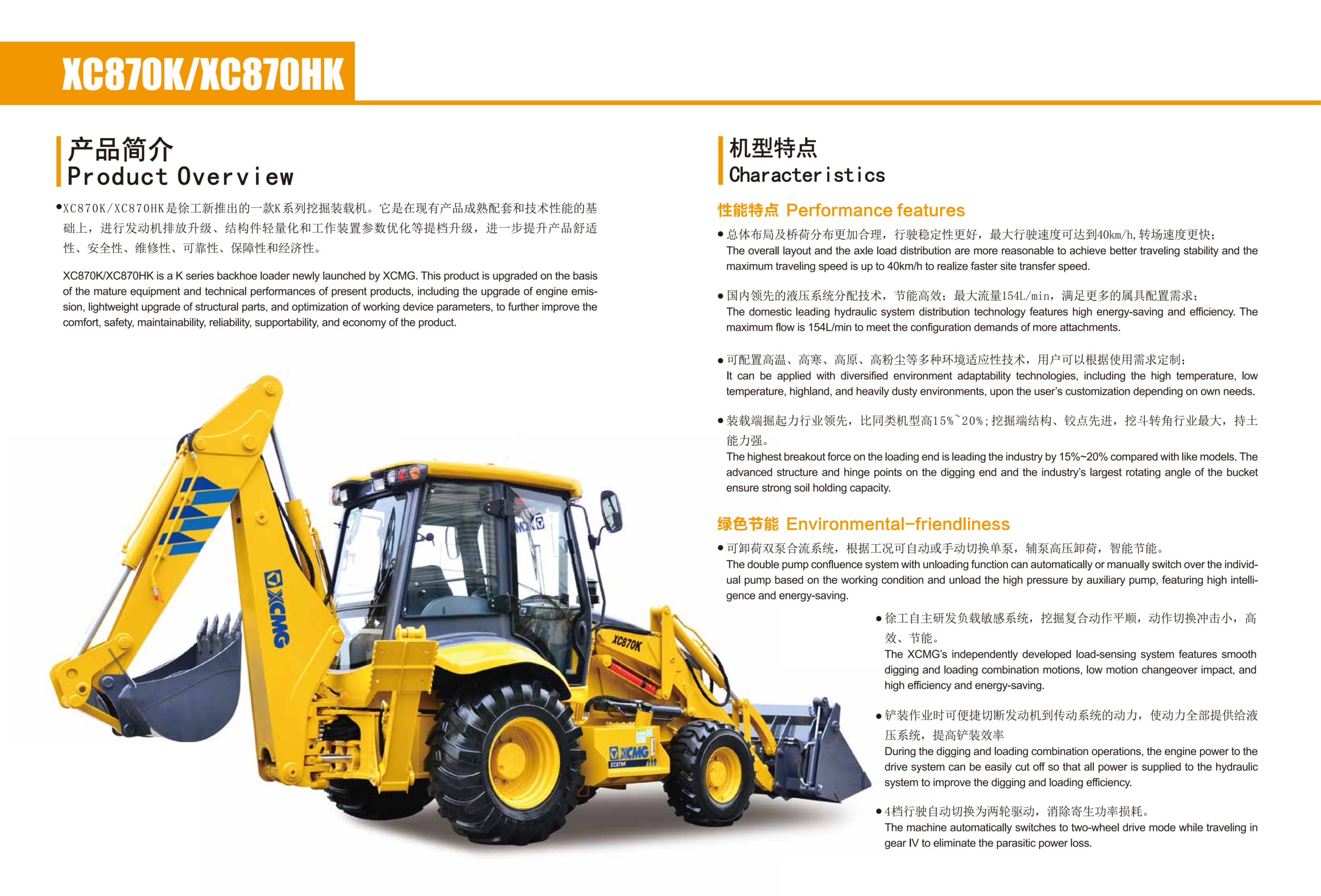

Product Overview

XC870K/XC870HK is a new series of backhoe loaders launched by XCMG. Building on the mature supporting systems and technical performance of existing products, this model has been upgraded in engine emission standards, structural lightweighting, and working device parameter optimization. These upgrades further enhance the product’s comfort, safety, maintainability, reliability, supportability, and economic efficiency.

Machine Characteristics

Performance Features

The overall layout and axle load distribution are optimized for superior driving stability. With a maximum traveling speed of 40km/h, it enables faster site transfer efficiency.
Adopting domestically leading hydraulic system distribution technology, the product achieves high energy efficiency and performance. It supports a maximum flow rate of 154L/min, meeting the configuration requirements of various attachments.
Customizable environmental adaptability technologies are available, including solutions for high temperature, low temperature, high altitude, and heavy dust conditions, tailored to meet specific user operational needs.
The breakout force at the loading end leads the industry, being 15%-20% higher than that of similar models. The digging end features an advanced structure and hinge points, with the largest bucket rotation angle in the industry, ensuring exceptional soil holding capacity.

Environmental-friendliness

Equipped with an unloading double-pump confluence system, it can automatically or manually switch to single-pump operation based on working conditions. The auxiliary pump realizes high-pressure unloading, achieving intelligent energy conservation.
XCMG’s independently developed load-sensing system ensures smooth combined digging and loading operations, with minimal impact during motion switching, delivering high efficiency and energy savings.
During loading operations, the power transmission from the engine to the drive system can be easily cut off, directing all power to the hydraulic system and significantly improving loading efficiency.
The machine automatically switches to two-wheel drive mode when traveling in 4th gear, effectively eliminating parasitic power loss.

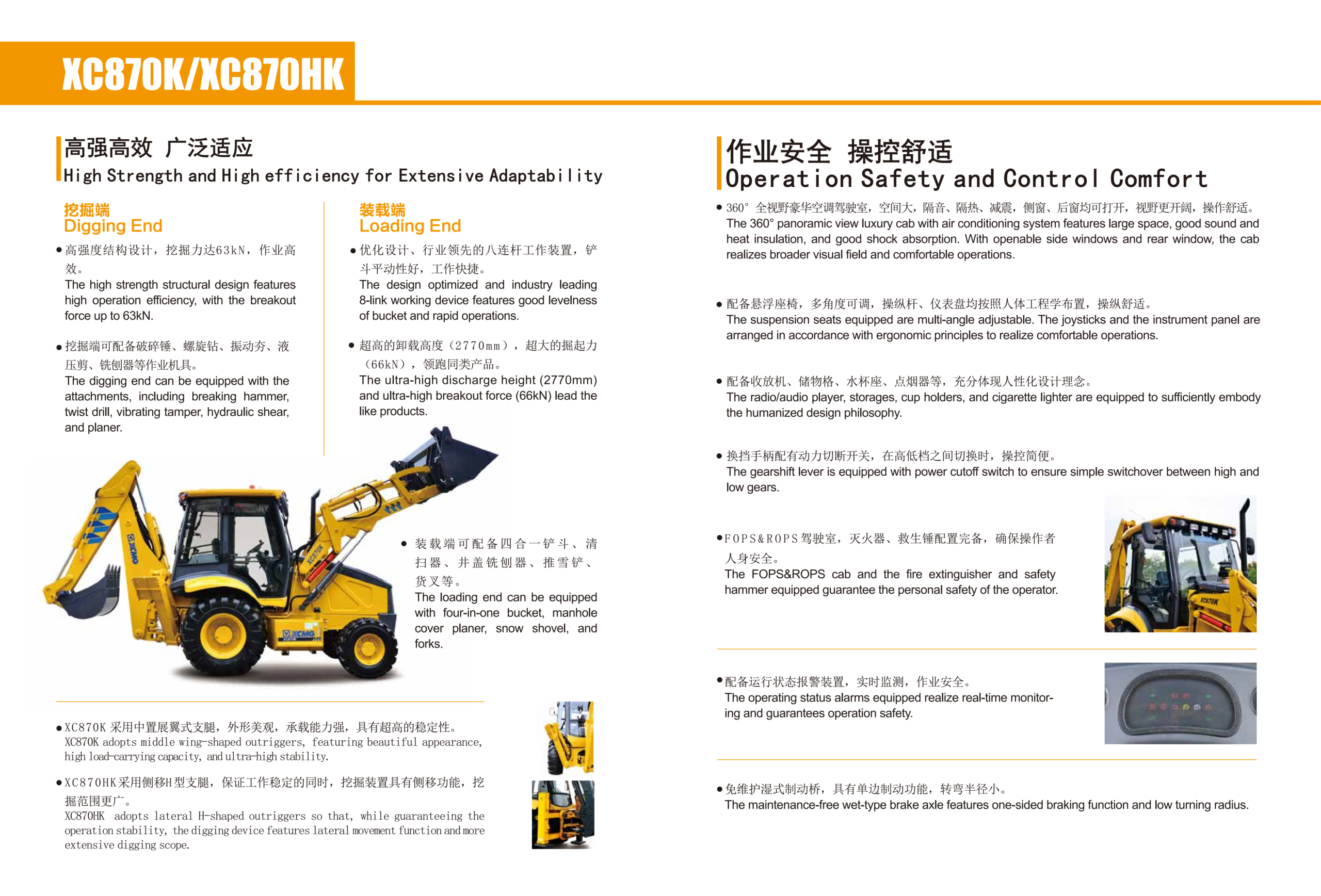

High Strength, High Efficiency and Extensive Adaptability

Digging End

The high-strength structural design ensures high operational efficiency, with a breakout force of up to 63kN and excellent working performance.
The digging end can be equipped with various attachments, including breaking hammer, twist drill, vibrating tamper, hydraulic shear, and planer.

Loading End

The optimized, industry-leading 8-link working device ensures level luffing of the bucket and rapid operation response.
The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) outperform similar products in the market.
The loading end is compatible with multi-functional attachments, such as four-in-one bucket, machine snow planer, snow shovel, and forks.

Structural & Stability Highlights

The XC870K adopts an external I-shaped outrigger design, boasting a sleek appearance, strong load-bearing capacity, and ultra-high stability.
The XC870K features an offset-type digging mechanism. While ensuring operational stability, the digging device has a lateral movement function and an extended digging range.

Operation Safety and Control Comfort

The 360° panoramic view luxury cab is equipped with an air conditioning system, featuring a spacious interior, excellent sound and heat insulation, dust and water resistance. With openable side windows and a rear window, the cab provides a broader visual field and comfortable operating conditions.
The suspension seats are equipped with multi-angle adjustment functions. The joysticks and instrument panel are arranged in accordance with ergonomic principles to ensure a comfortable operating experience.
The cab is fully equipped with practical amenities including a radio/player, storage compartments, cup holders, and a cigarette lighter, fully reflecting the humanized design concept.
The gearshift lever is equipped with a power cut-off switch, enabling simple and convenient switching between high and low gears.
The cab is configured with a full set of safety devices including FOPS & ROPS, a fire extinguisher, and a safety hammer, providing comprehensive protection for the operator’s personal safety.
The integrated operation status alarm system enables real-time monitoring, effectively guaranteeing operational safety.
The maintenance-free wet-type brake system features a one-sided braking function and a small turning radius, enhancing operational flexibility and safety.

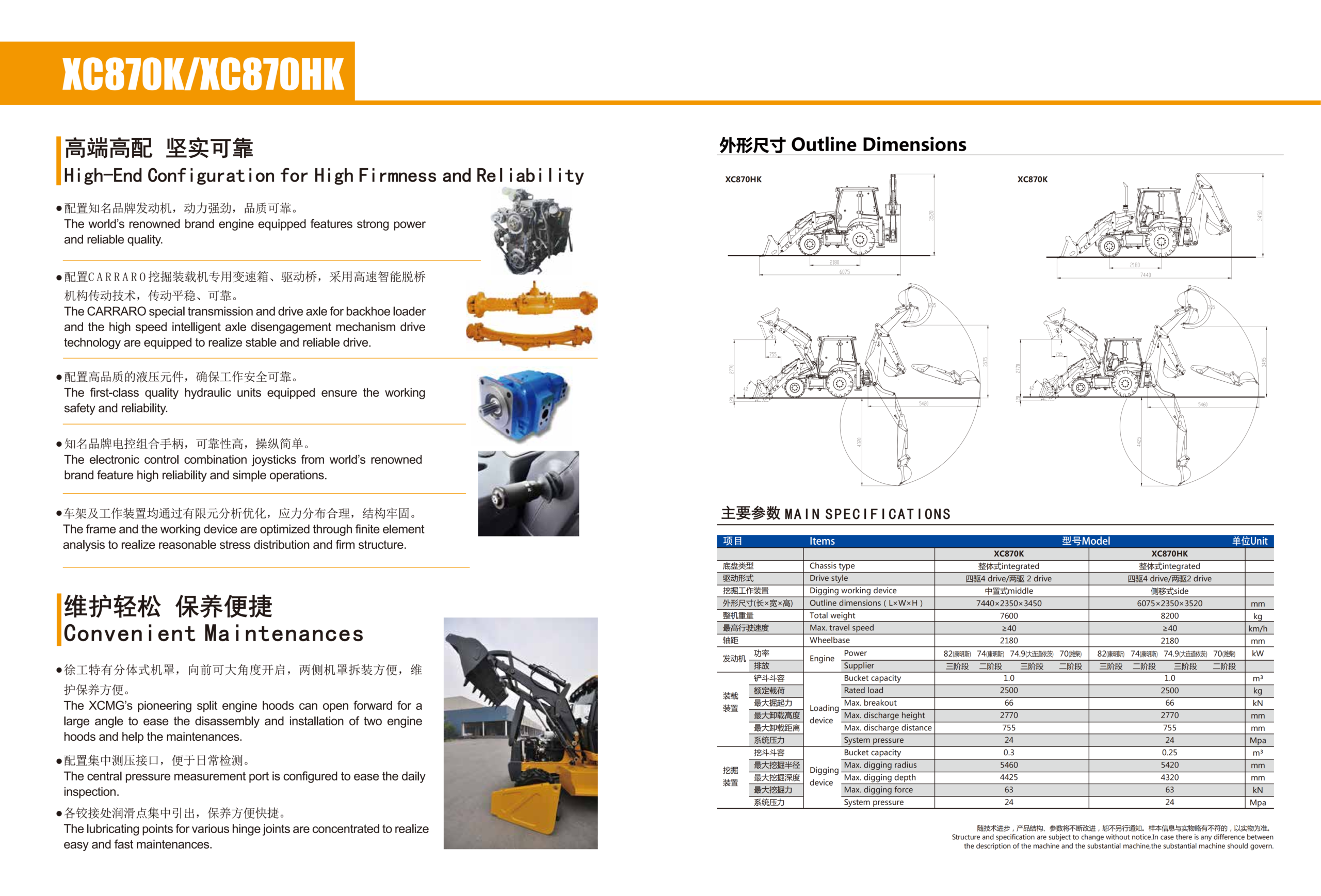

High-End Configuration for High Firmness and Reliability

Renowned Brand Engine: Equipped with a world-renowned brand engine, delivering strong power and reliable quality.
CARRARO Drivetrain: Features a special CARRARO transmission and drive axle, along with high-speed intelligent axle disengagement technology, ensuring stable and reliable operation.
Premium Hydraulic Components: First-class hydraulic units are installed to guarantee safe and reliable operation.
Ergonomic Controls: Electronic control combination joysticks from world-renowned brands offer high reliability and simple operation.
Optimized Structure: The frame and working device are optimized via finite element analysis, resulting in a reasonable stress distribution and a robust structure.

Convenient Maintenances

Split Engine Hoods: Pioneering split engine hoods can be opened forward at a large angle, and both side hoods are detachable, making engine maintenance and installation easier.
Centralized Pressure Port: A central pressure measurement port is configured to facilitate daily inspection.
Concentrated Lubrication Points: Lubrication points at all hinge joints are concentrated, enabling easy and fast maintenance.
