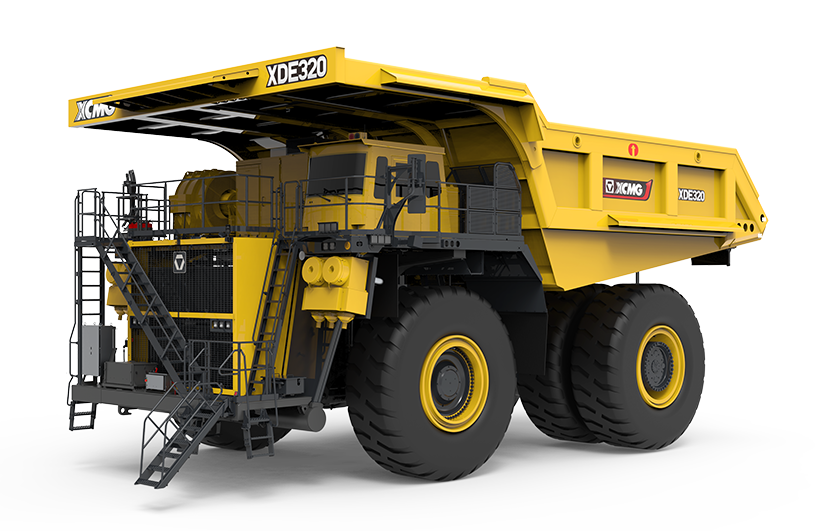

Expert Evaluation: The XDE320 electric drive dump truck has powerful performance, featuring high reliability and low failure rate. It has a maximum speed of 64.5 km/h and a maximum gradeability of 18%. With a rated load of 290 tons, it is suitable for large-scale open-pit mining with an annual output of 20 million tons and large-scale earthwork transportation. It is equipped with an automatic weighing system, centralized fire suppression system, centralized lubrication system, GPS system, and various safety devices to ensure safe and efficient operation.

Rated Load (kg)
290000

Full Load Weight (kg)
511000

Wheelbase (mm)
6350

Product Introduction

● Adopts a new generation AC drive technology, featuring high reliability, low maintenance rate, and high output torque; during heavy-load climbing, the AC motor is not limited by voltage, does not generate excessive current, has high transmission efficiency, and responds quickly.

● The chassis uses box-section longitudinal beams and ring beams, suitable for harsh operations with variable loads; it ensures lightweight design while improving strength and stiffness, enhancing overall vehicle efficiency.

● Equipped with an original imported electronic-controlled diesel engine, offering good fuel economy and abundant power; the engine monitoring system can monitor the working status of each cylinder in real time, effectively preventing various faults, extending engine lifespan, and reducing operating costs.

● Fitted with an ISO-compliant ROPS & FOPS cab for rollover and falling object protection, with sound insulation and noise reduction to ensure driving safety. Vehicle operating data and fault alarms are displayed via a combination of a touchscreen LCD and controllable instruments, allowing real-time monitoring of operational status.

● The chassis employs a box-section design, made of high-strength quality alloy steel, providing excellent fatigue resistance, low-temperature impact toughness, and welding performance. The cargo bed is constructed from high-strength wear-resistant plates welded with low-alloy high-strength tempered steel, featuring a lightweight design for a longer service life.

● Uses a centralized lubrication system that provides timed and quantifiable lubrication with a high level of automation. Maintenance points in each functional area are easily accessible and equipped with lighting, making maintenance more convenient.

Product Selling Points

Adopts a centralized lubrication system with a high degree of automation.
The cargo compartment features a lightweight design, extending its service life.
Can achieve constant power control, stepless speed regulation, and strong traction.
AC electric drive technology, safe and reliable, with low maintenance costs.
Maximum speed 64.5 km/h, maximum gradient 18%.
