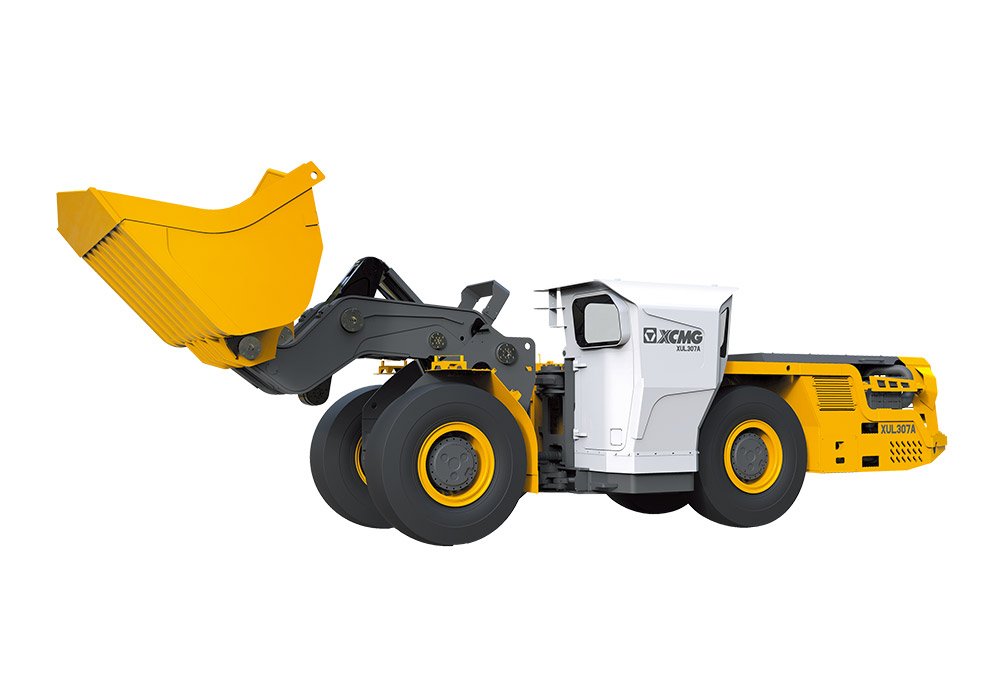

Expert Evaluation: The XUL series underground loaders are suitable for loading, transporting, and unloading materials in non-explosive mine tunnels and other small tunnels.

Project Unit
Parameter

Rated Bucket Capacity m³
3

Rated Load t
7

Product Introduction

Low Pollution and Environmental Protection: High-standard National IV emission engine effectively reduces exhaust pollution in underground mine working faces and tunnels.
High Reliability: Imported engine paired with DANA axle, low failure rate; working components use high-strength plates, high safety factor, and longer service life.
Personnel Safety: Cabin meets FOPS/ROPS certification and is equipped with three emergency exits to enhance personnel safety.
High Efficiency and Energy Saving: Uses dual-pump converging technology for steering and working systems, effectively improving the efficiency of the working mechanism.
Easy Operation: Gear shift operation and steering handle are integrated for control, reducing operational complexity.
Driving Comfort: Cabin is fixed with multi-directional shock absorbers and equipped with an air suspension seat, providing a better driving experience.

Parameter Configuration

Item	Unit	Parameter
Rated Bucket Capacity	m³	3
Rated Load Capacity	t	7
Max. Digging Force	kN	130
Max. Traction Force	kN	175
Travel Speed (Forward/Reverse)	km/h	4.3/8.7/16.9/23.9
Transport Overall Dimensions	m	8.93×2.29×2.29
Min. Turning Radius	mm	3075/5870
Operating Weight	t	19.8±0.5
Engine Brand/Model	/	Volvo TAD880VE
Engine Power	kW	160
Engine Emission	/	China IV
Wheelbase	mm	3180
Frame Steering Angle	°	42.5
Gradeability (Loaded)	°	14
Min. Ground Clearance	mm	338
Frame Oscillation Angle	°	8
Max. Dump Height (Working Equipment)	mm	1938
Min. Dump Distance (Working Equipment)	mm	1630
Max. Lifting Capacity (Working Equipment)	kN	100
Total Time of Three Movements	s	13
Optional Equipment	/	1. Centralized Automatic Lubrication System; 2. Integrated Fire Extinguishing System; 3. Automatic Weighing System; 4. Emergency Steering Function; 5. Emergency Braking Function; 6. Remote Control System; 7. 3.5m³ Bucket.
