Expert Evaluation:

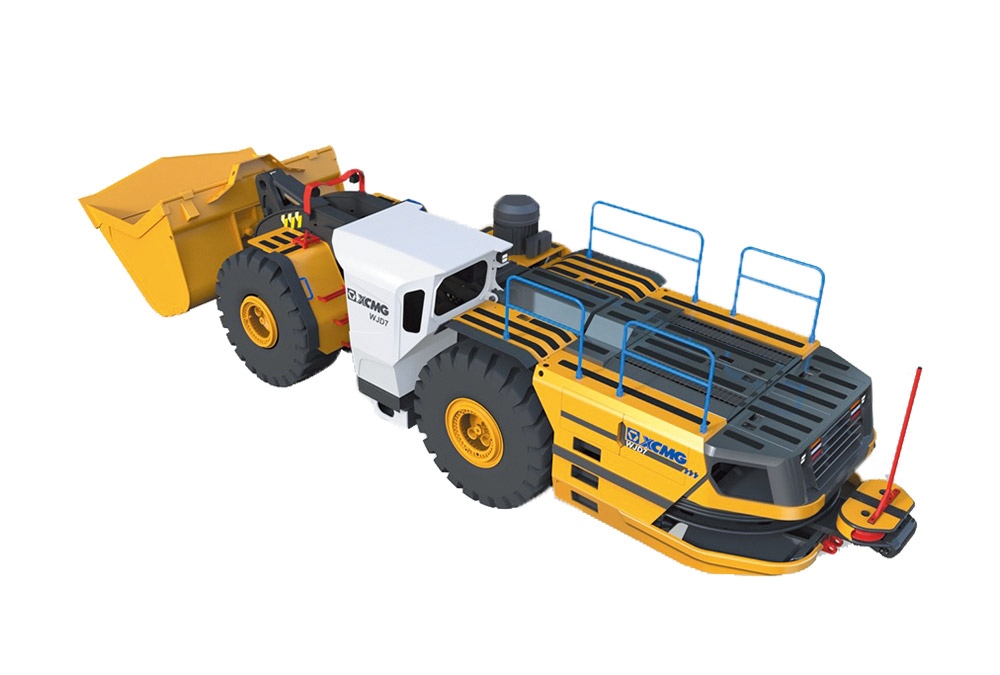

The XCMG underground electric shuttle loader has a bucket capacity of less than 7m³ and a maximum tonnage of up to 15T. Its power system uses a dual-motor configuration, making it more efficient and energy-saving. It features a new constant-tension cable winding and unwinding system to extend cable life. Equipped with the Bendel safety protection system, it has multiple leakage protection devices. The cabin meets FOPS and ROPS standards with an enclosed design, suspension seats, and air conditioning.
Project Unit
XUL515D (WJD-4)

Rated Bucket Capacity m³
7

Rated Load Capacity t
15

Parameter Configuration

Item	Unit	XUL515D(WJD-4)
Rated Bucket Capacity	m³	7
Rated Load Capacity	t	15
Max. Digging Force	kN	256
Max. Traction Force	kN	282
Travel Speed (Forward/Reverse)	km/h	3.6/6.2/10.6/18.0
Transport Overall Dimensions	m	11.07×2.98×2.57
Min. Turning Radius	mm	3400/7045
Operating Weight	t	38.5±0.5
Wheelbase	mm	3650
Steering Angle	°	42.5
Max. Dump Height	mm	2431
Min. Dump Distance	mm	1743
Max. Lifting Capacity	kN	150
Total Time of Three Movements	s	14.6
